PowerHive

PRODUCT OVERVIEW

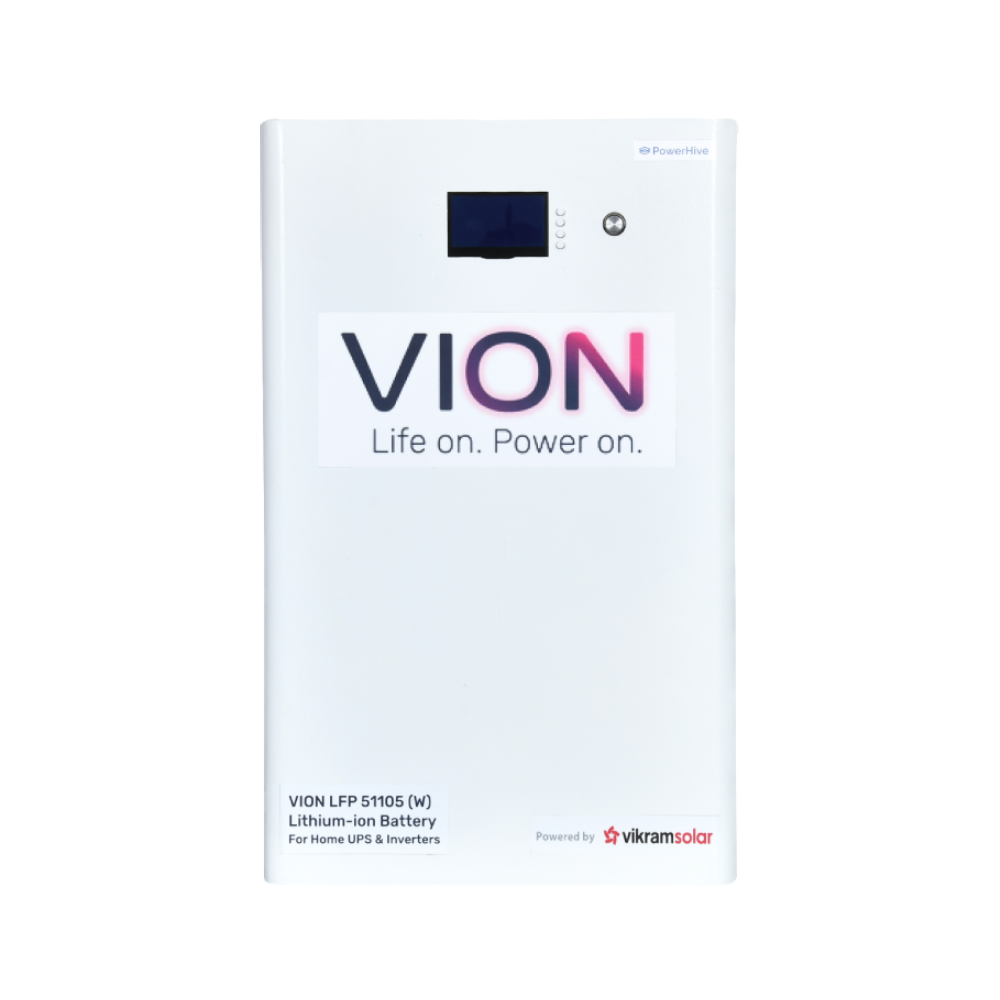

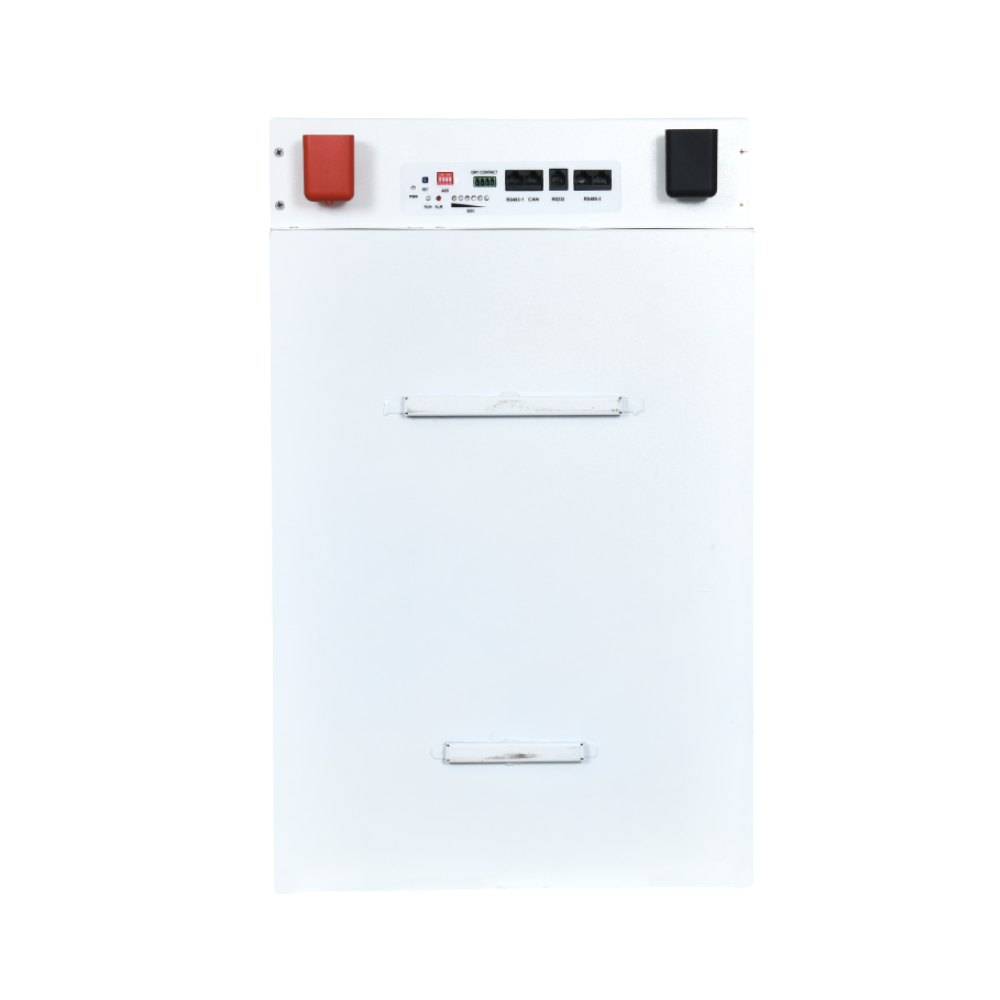

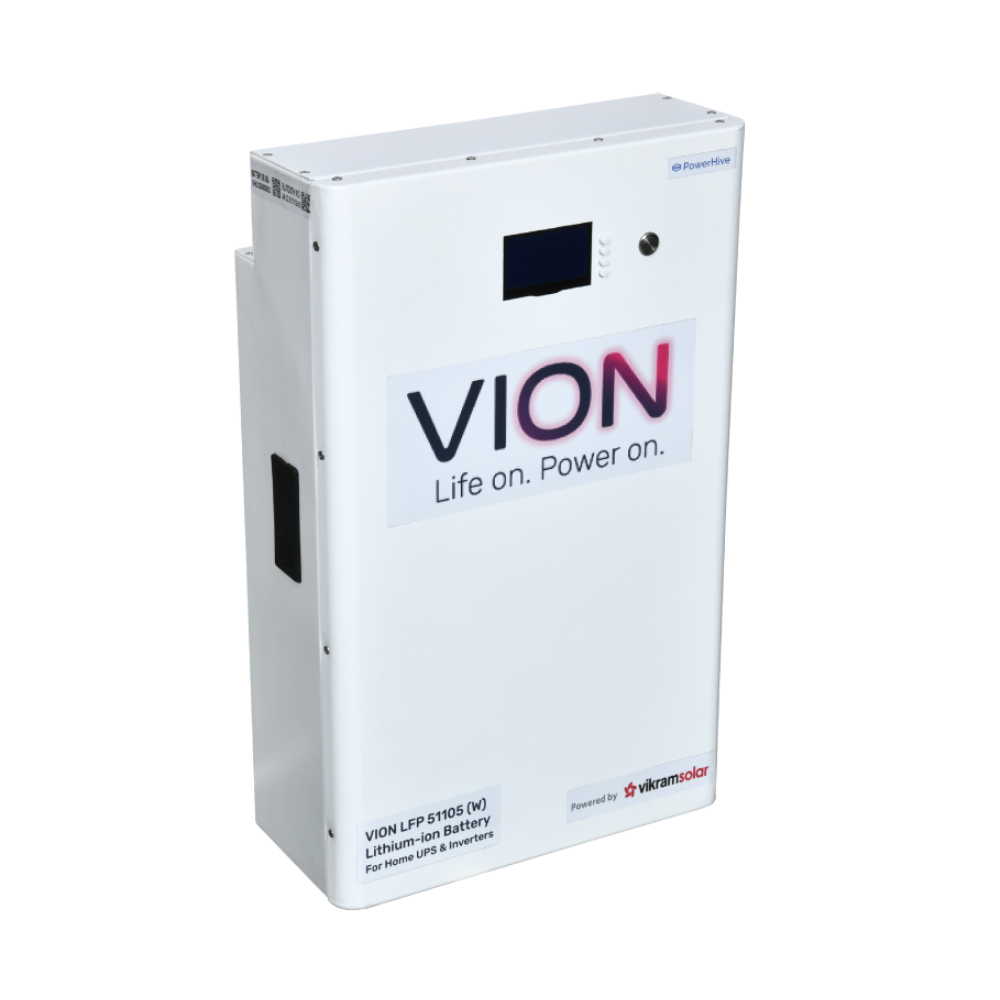

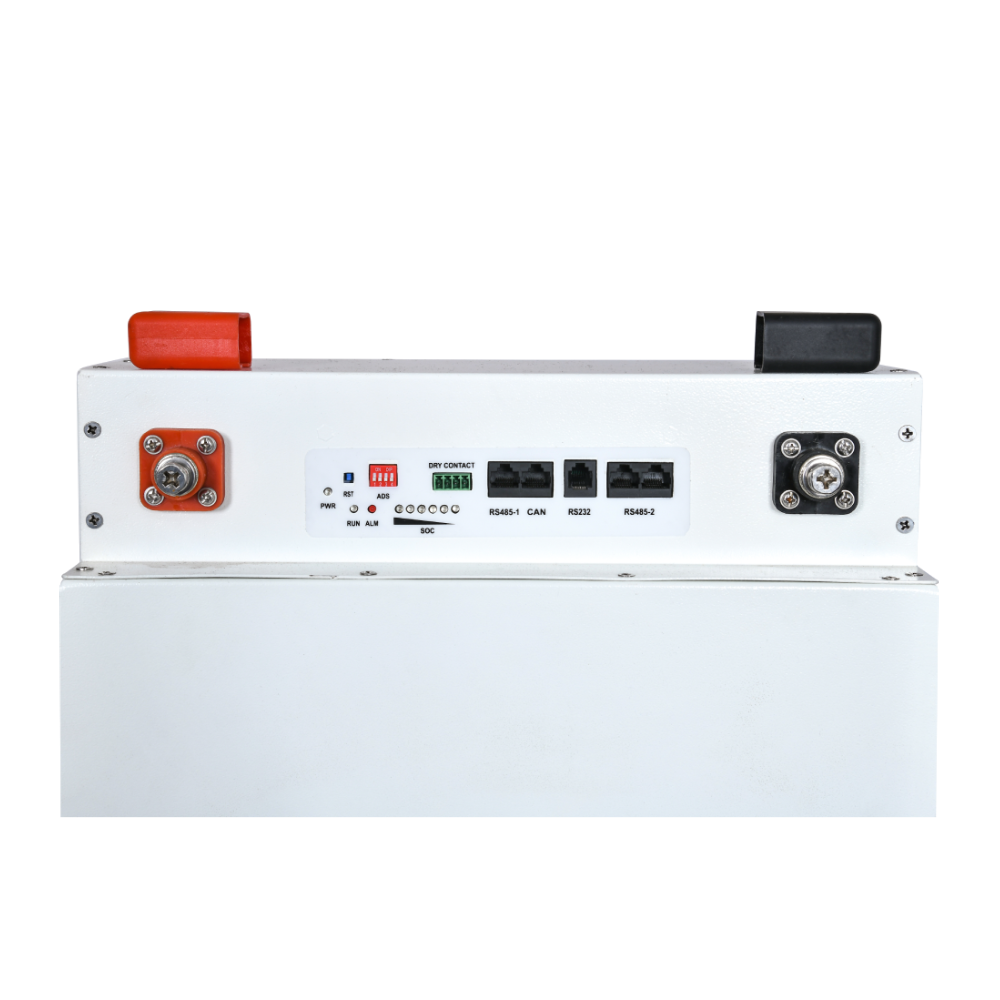

51.2V | 100Ah | 58.4V lithium-ion battery engineered for high-capacity residential and solar energy storage applications.

PRODUCT FEATURES

Long Lasting Power

Engineered for Solar

Smart BMS

Scalable up to 16 Units

TECHNICAL SPECIFICATIONS

Battery Model

VION LFP 51105 (W)

Nominal Voltage

51.2V

Rated Capacity

100Ah

Charge Voltage

58.4V

Standard Charging Current

40A

Standard Discharge Current

50A

Max Charging Current

60A 5mins

Max Discharge Current

80A 5mins

Discharge Cut-off Voltage

40V

Nominal Energy

5.12 kWh

Operating Temp Charge

0~55

Operating Temp Discharge

-10~60

Working Humidity

<80% RH

IP Rating

IP50

Weight

44 Kg

Dimensions (mm) (L X B X H)

368*160*590
