PRODUCT OVERVIEW

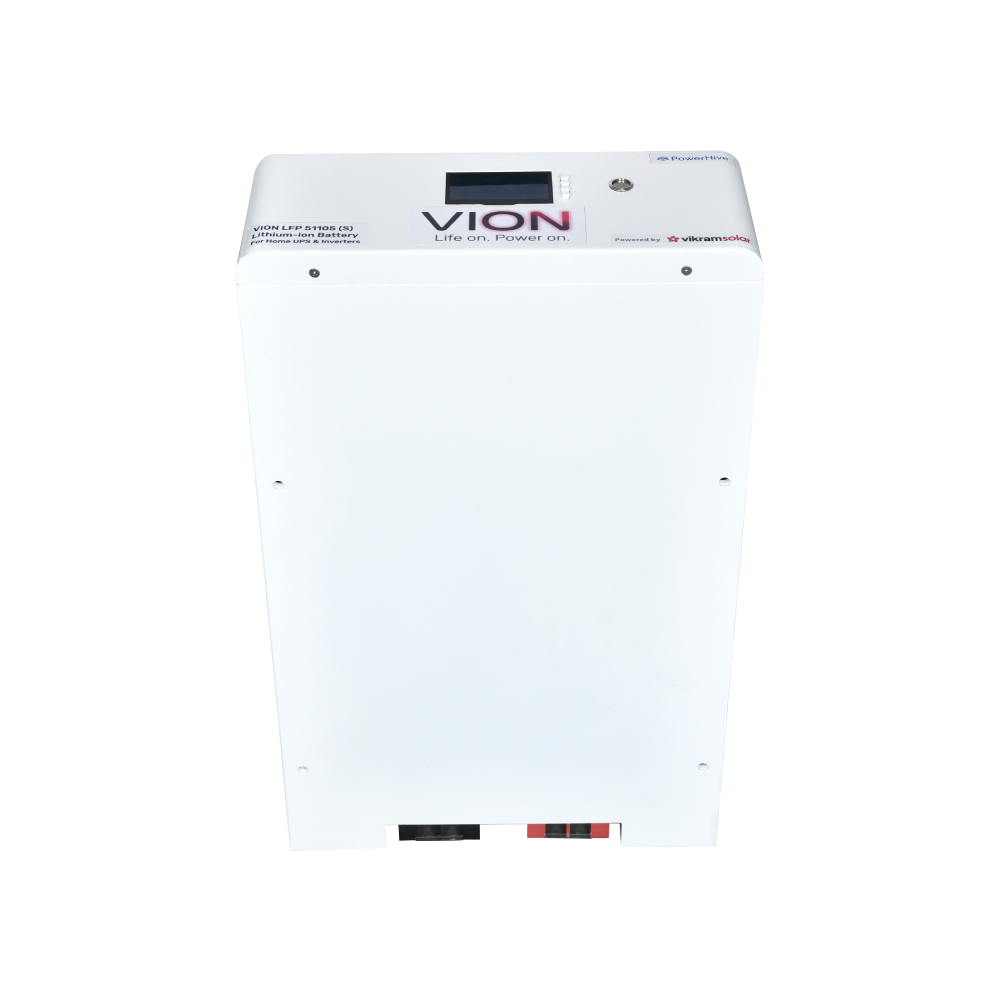

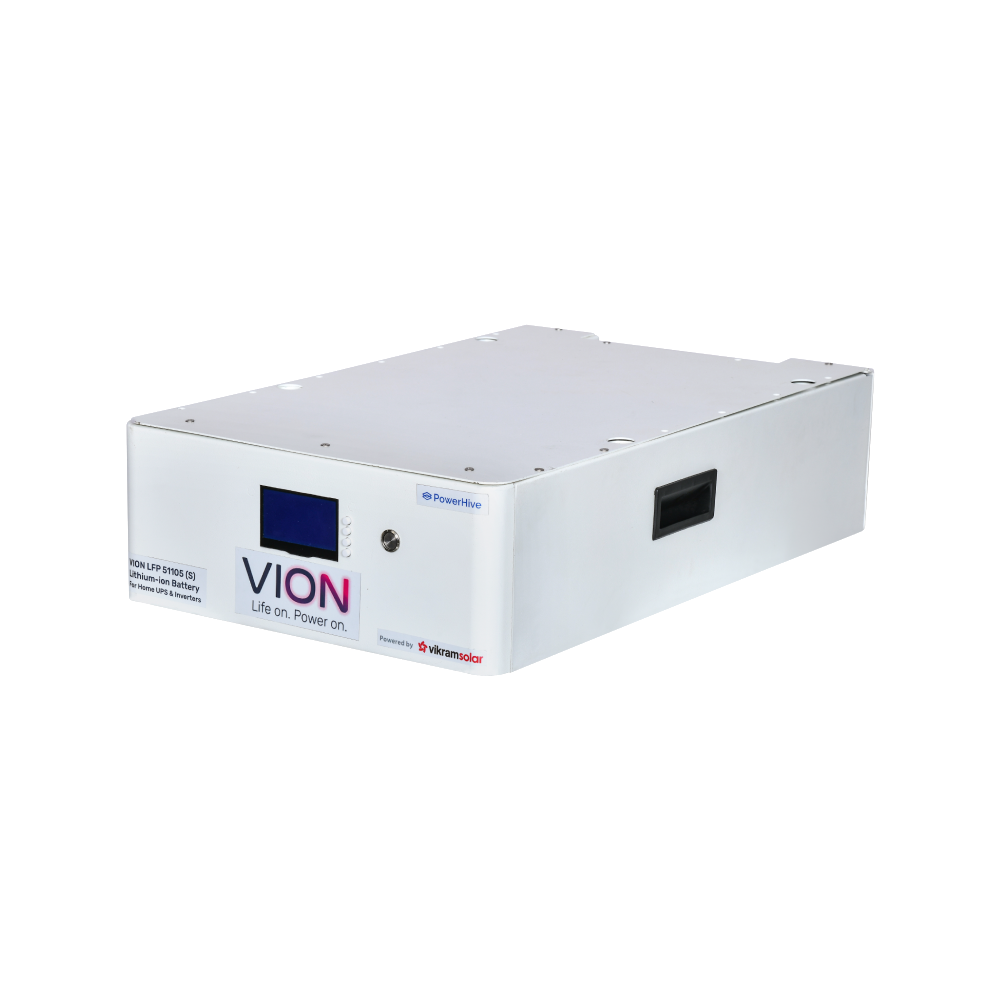

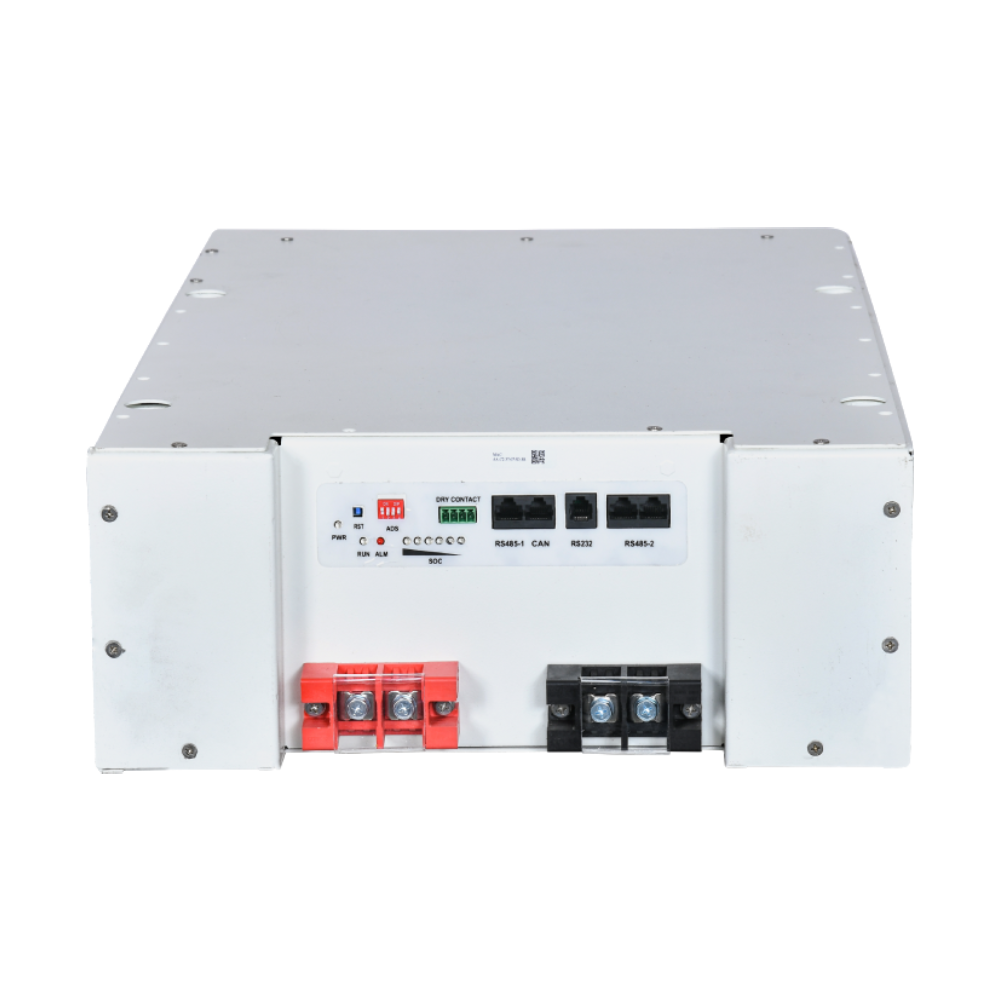

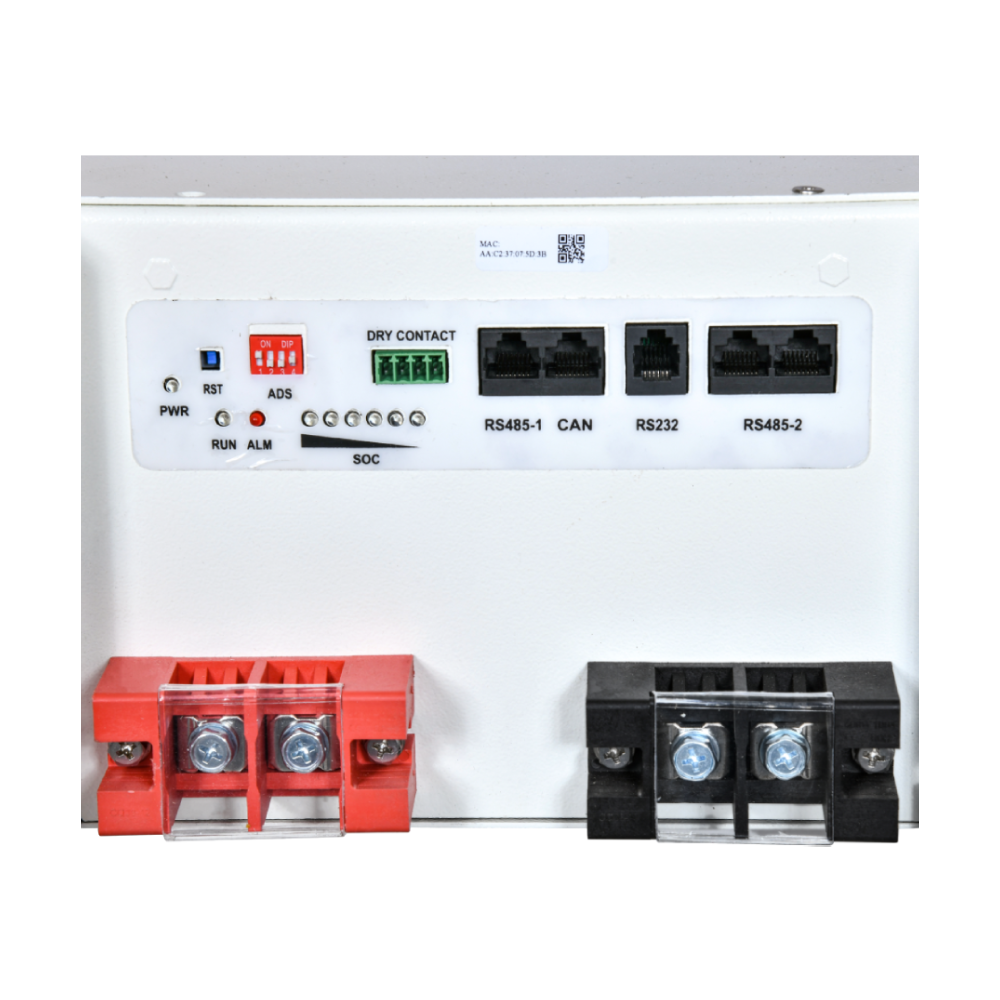

51.2V | 100Ah | 58.4V lithium-ion battery engineered for high-capacity residential and solar energy storage applications.

PRODUCT FEATURES

Long Lasting Power

Engineered for Solar

Smart BMS

Stackable up to 16 Units

TECHNICAL SPECIFICATIONS

Battery Model
VION LFP 51105 (S)
Nominal Voltage
51.2V
Rated Capacity
100Ah
Charge Voltage
58.4V
Standard Charging Current
40A
Standard Discharge Current
50A
Max Charging Current
60A 5mins
Max Discharge Current
80A 5mins
Discharge Cut-off Voltage
40V
Nominal Energy
5.12 kWh
Operating Temp Charge
0~55
Operating Temp Discharge
-10~60
Working Humidity
<80% RH
IP Rating
IP50
Weight
45 Kg
Dimensions (mm) (L X B X H)
368*600*161
