PowerHive

PRODUCT OVERVIEW

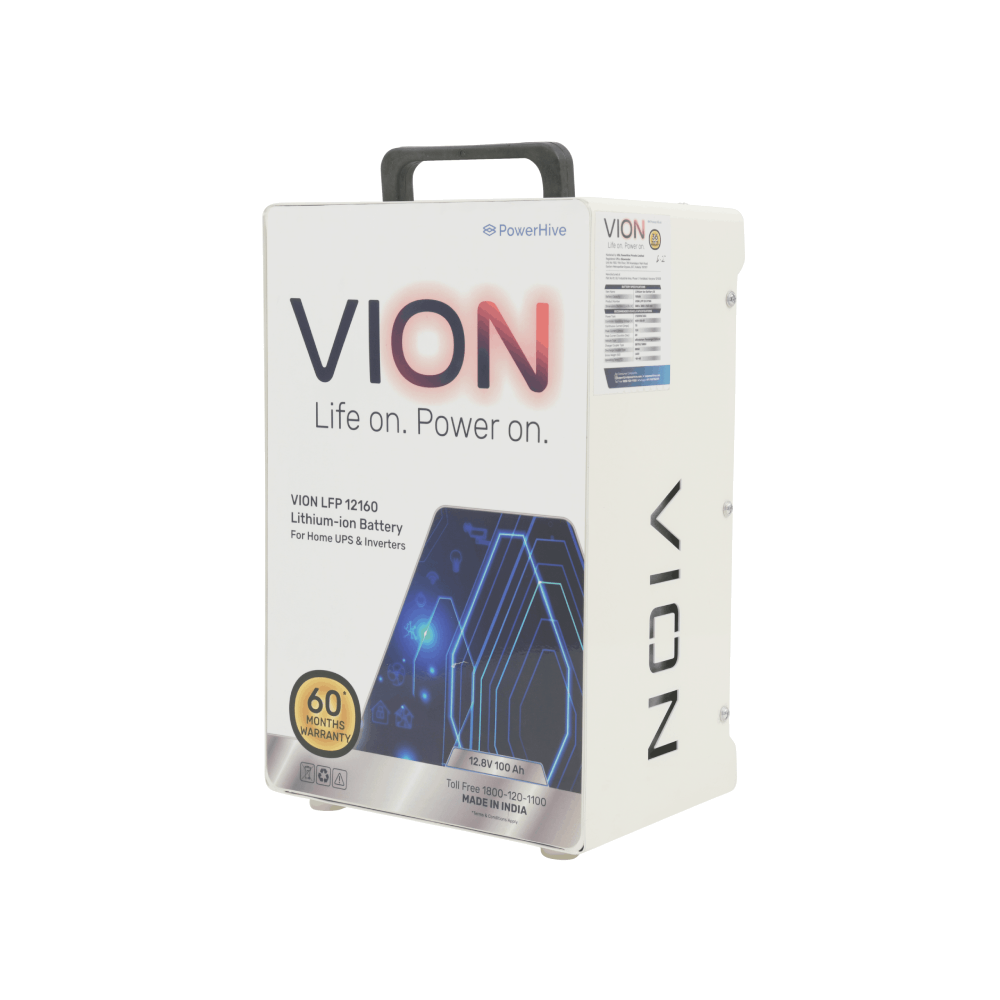

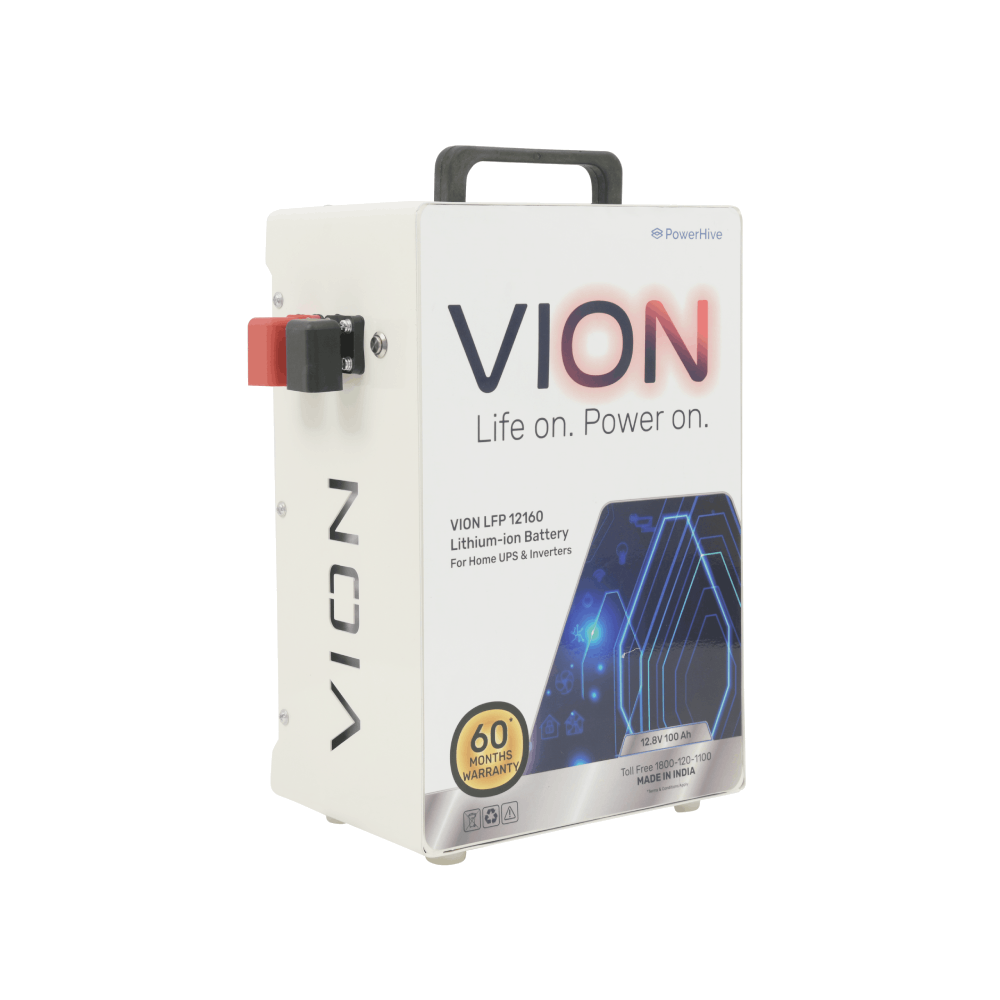

12.8V | 100Ah | 1280Wh lithium-ion battery designed for residential backup.

PRODUCT FEATURES

Longer Life

BMS Protection

High Efficiency

Clean & Safe

Zero Maintenance

Wall Mountable

TECHNICAL SPECIFICATIONS

Battery Model

VION LFP 12160

Nominal Voltage (V)

12.8 V

Nominal capacity (Ah)

100 Ah

Energy capacity (Wh)

1280 Wh

Maximum Charging Voltage

14.6 V

Minimum Discharging Voltage

10 V

Continuous Charging Current

40 A

Continuous Discharging Current

50 A

Max continuous charge current

60 A(5min)

Maximum Continuous Discharge Current

80 A(5min)

Pulse Discharge Current for 30 secs

120 A

Operating Temperature Range @ Charge

0 ~ 55 °C

Operating Temperature Range @ Discharge

-10 ~ 60 °C

Back-up time* 400W

>3 hrs

Dimensions (mm) (L x B x D)

336*226*150

Weight (kg)
