PRODUCT OVERVIEW

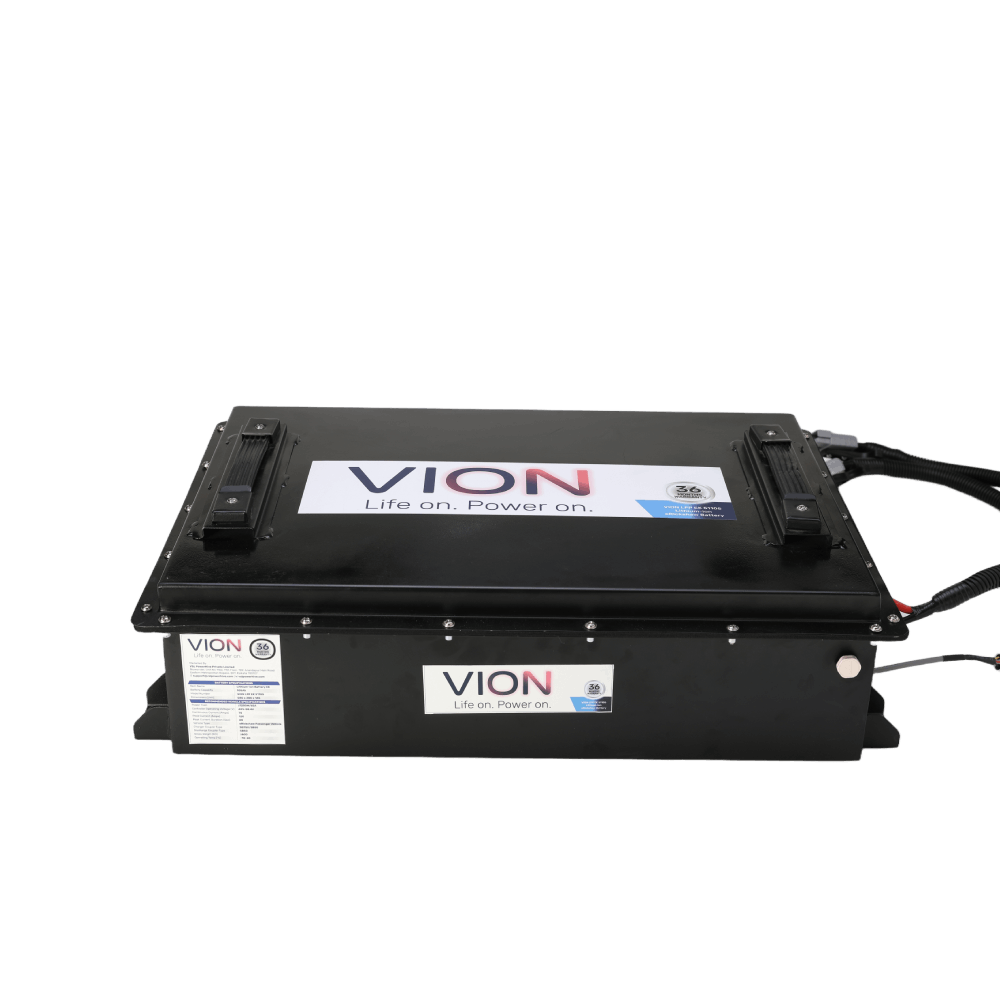

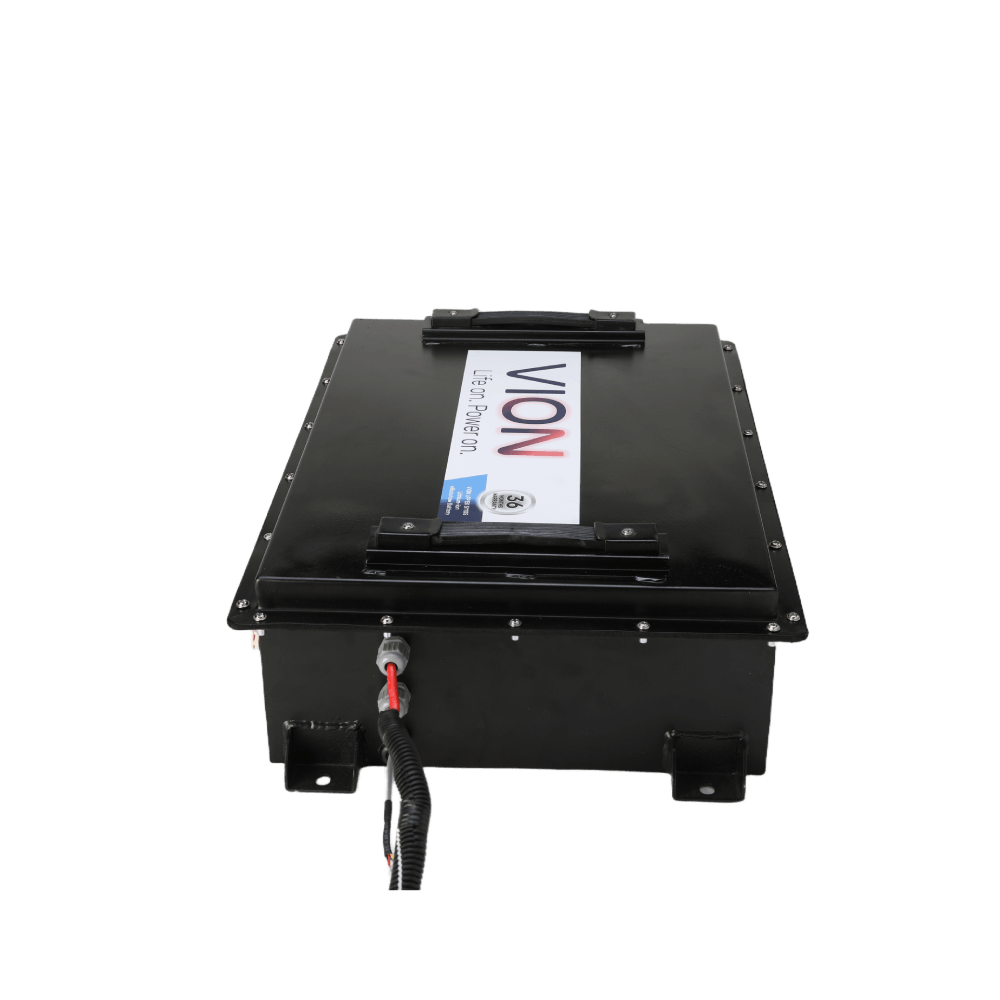

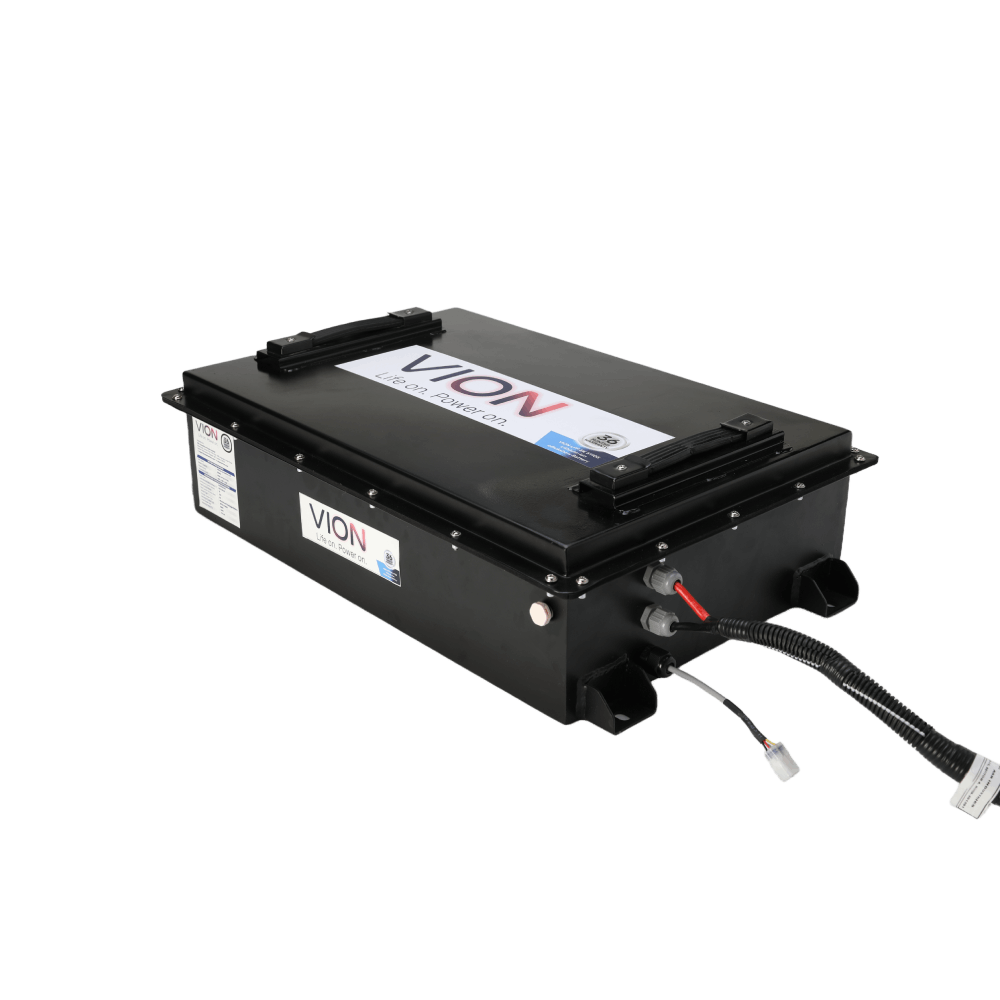

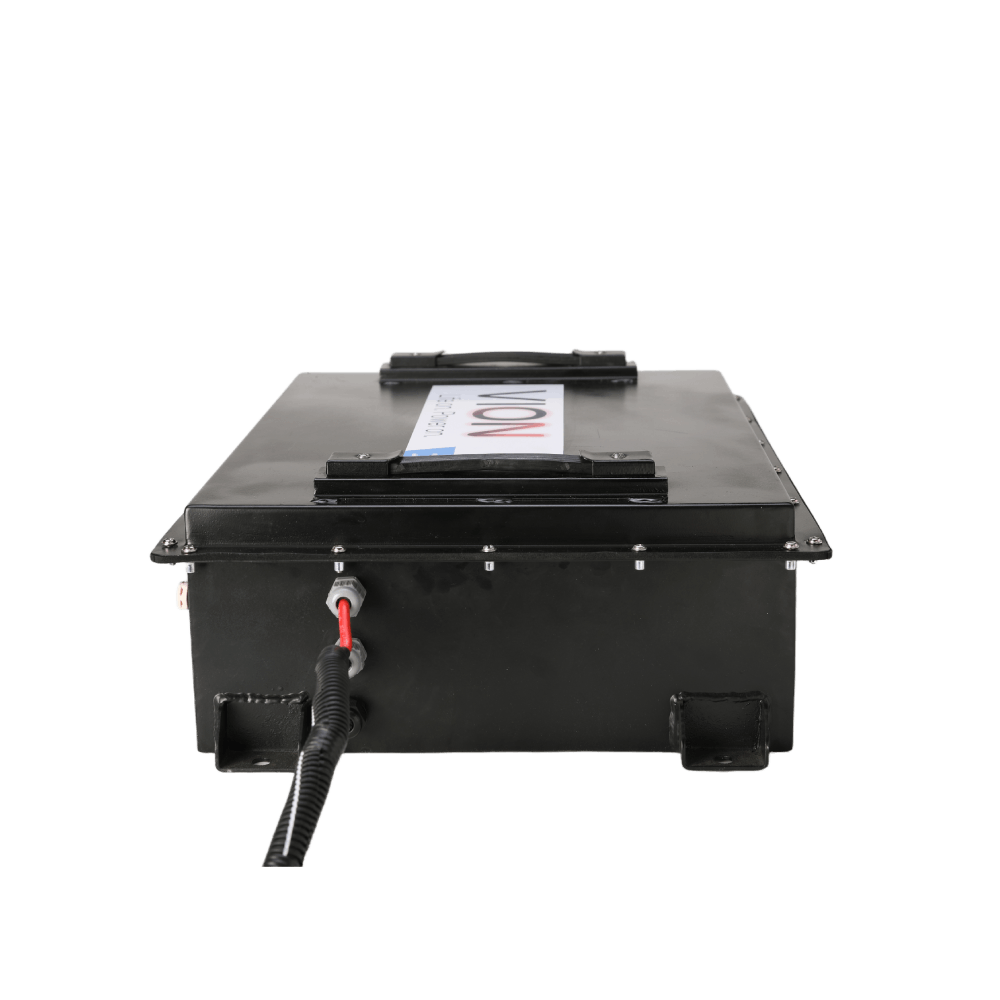

51.2V | 105Ah | 5.4kWh lithium-ion battery engineered for high-performance E-Rickshaw applications.

PRODUCT FEATURES

Longer Life

Thermal Protection

High Mileage

Water Splash Proof

Short Circuit Protection

TECHNICAL SPECIFICATIONS

Battery Model
VION LFP EK 51105
Nominal voltage (V)
51.2V
Nominal capacity (Ah)
105Ah
Energy capacity (Wh
5.4kWh
Operating voltage
40V-58.4V
Operating Temperature Charging
0°C ~ 55°C
Discharging Temperature Charging
-10°C -60°C
Battery pack cell level configuration
16S1P
Max continuous charge current
Upto 0.5C
Max continuous discharge current
70A
Peak charge current - "C" Rate
100A for 10sec
Peak discharge current - "C" Rate
120A for 20sec
Dimensions (mm)
580 x 380 x 165 mm
Weight of the battery pack
42 kg
IP Rating
IP67
HV Connector - CHG/DSG
SB50
Warranty
36 months
Certifications
AIS 156 compliant
Enclosure
Sheet Metal, IP67
